AD Health Monitor

Description

The AD Health Check Tool will run up to 27 diagnostics tests on each domain controller. Each diagnostic test will return a pass or a failure. This GUI tool makes it easy to check the health of your domain controllers.

Requirements

1. It is recommended to run this tool on a domain controller. It can generate false positives if run on a client operating system.

List of Tests

Test Name	Short Description
Advertising	Checks whether each DC advertises its roles (DC, GC, KDC, etc.) and validates DsGetDcName behavior.
CheckSDRefDom	Validates that application directory partitions have correct msDS-SDReferenceDomain values.
CheckSecurityError	(Not run by default) Performs security checks: KDC reachability, DC object replication, Kerberos MTU issues, permissions, SPNs, SYSVOL/NETLOGON access, and more.
Connectivity	Verifies LDAP/RPC connectivity and DNS registration of the DSA.
CrossRefValidation	Validates crossRef objects in the configuration partition including nCName, dnsRoot, nETBIOSName, systemFlags, and orphaned replicas.
CutoffServers	Detects DCs missing valid replication connection objects (servers “cut off” from replication).
DcPromo	Runs prechecks for promoting a server to a DC (DNS config, locator records, dynamic updates); requires /DnsDomain args.
DFSREvent	Checks DFS Replication event logs for warnings or errors from the last 24 hours.
DNS	Runs comprehensive DNS health tests across the enterprise (requires /test:DNS).
FrsEvent	Checks File Replication Service (FRS) event logs for errors from the last 24 hours.
Intersite	Validates intersite replication configuration, ISTG behavior, and predicts KCC recovery time.
KccEvent	Queries KCC for errors/warnings in Directory Services event logs from last 15 minutes.
KnowsOfRoleHolders	Reports the DC’s knowledge of FSMO role holders (cross-checked when using /e).
LocatorCheck	Validates that DC locator SRV records can be resolved for forest/domain.
MachineAccount	Validates the DC’s computer account (exists in DC OU, correct flags, SPNs); same internal test as CheckSecurityError.
NCSecDesc	Checks permissions on naming contexts (schema, config) for replication/permission health.
NetLogons	Ensures access to SYSVOL/NETLOGON and that required privileges are configured.
ObjectsReplicated	Confirms key directory objects have replicated fully; additional objects can be tested with /objectdn.
OutboundSecureChannels	(Not run by default) Checks secure channels from DCs to specified domains (requires /testdomain).
RegisterInDNS	Tests whether the DC can register required locator DNS records and validates DNS zone status/dynamic updates.
Replications	Validates replication status for all naming contexts, reporting errors, latency, and disabled connections.
RidManager	Verifies RID Master availability and RID pool validity.
Services	Confirms critical AD-related services are running and set to proper startup types.
SysVolCheck	Verifies SYSVOL readiness via the SysVolReady registry key.
SystemLog	Checks System Event Log (last 60 minutes) for errors/warnings.
Topology	(Not run by default) Validates that replication topology is fully connected.
VerifyEnterpriseReferences	Validates enterprise-wide system reference attributes used by FRS/DFSR and replication infrastructure.
VerifyReferences	Checks system reference attributes for a single DC.
VerifyReplicas	Ensures application directory partitions are correctly instantiated on appropriate replica servers.

How to

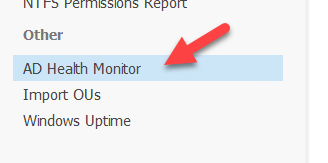

Step 1. Click on “AD Health Monitor”

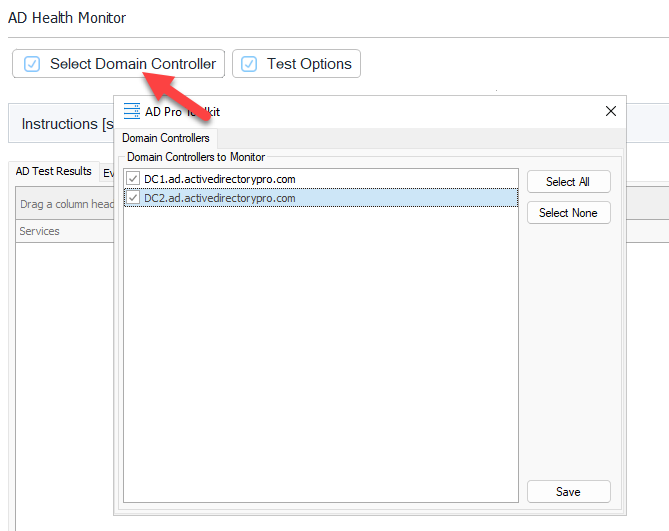

Step 2. Click the “Select Domain Controller” button and select the domain controllers you want to test.

Step 3. Click “Test Options” and select the type of test to run.

Note: Selecting “Comprehensive” results in longer test times.

Step 4. Click “Run” to start

If a test fails you can click on “View Log File” to view the details.
